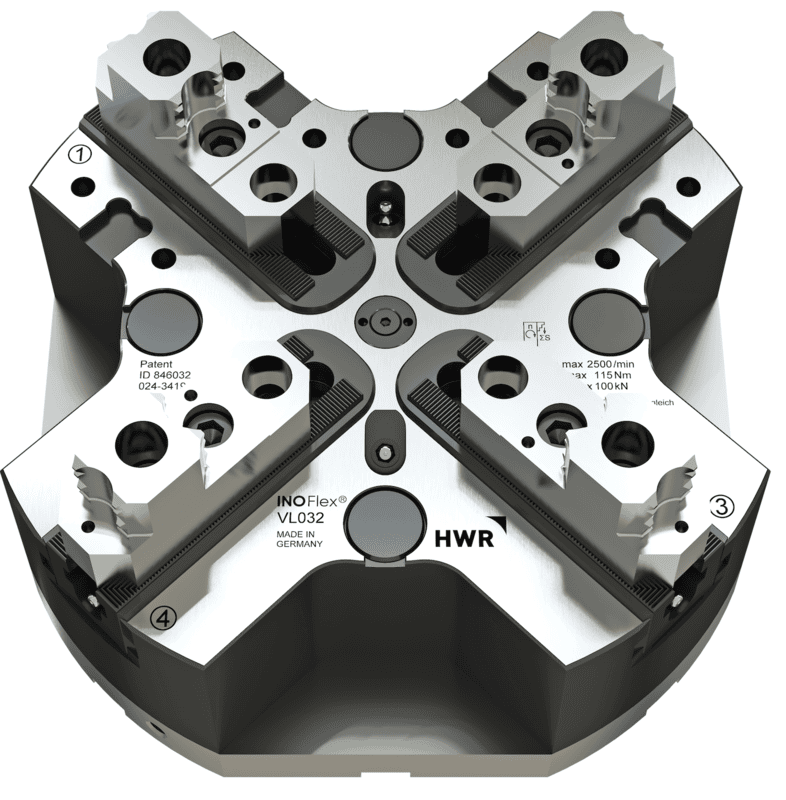

INOFlex VL032 manual chuck

4-jaw manual compensating chuck 320mm dia. with centrifugal force compensation, · with four movale jaws: max. tightening torque 120Nm max. total clamping force 100kN · with two movable jaws: max. tightening torque 120Nm max. total clammping force 50kN · with fixed jaw: max. tightening torque 60Nm max. total clamping force 50kN max. speed 2800 rpm., weight (without top-jaws) 53 kg, jaw-connection: V=1.5mm*60°, N=16mm, mounted on the base plate for drilling an individual hole pattern, incl. 1 set soft top-jaws VS17, 1 set t-nuts GP11 and special grease OKS265 [Documentation German, English]
