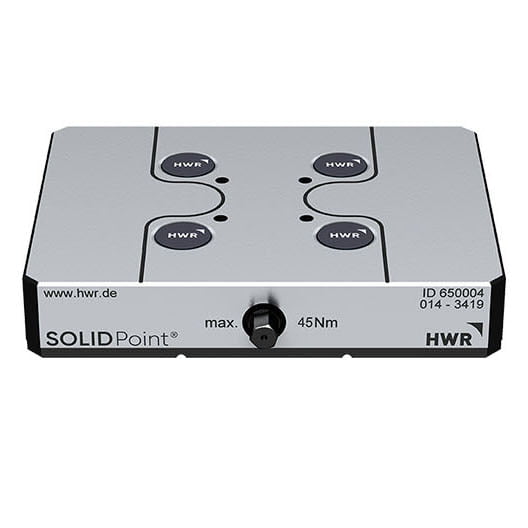

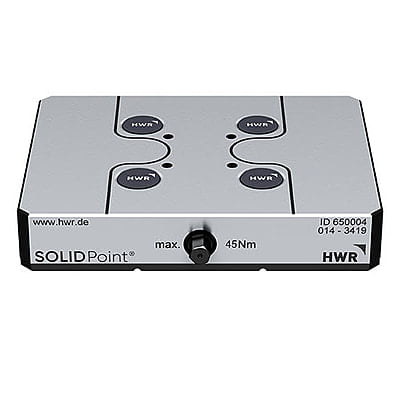

SOLIDPoint 52, ...Zero Point Plate, Single, Rectangular 150mm x 116mm, un-drilled

Dimensions

• Dimensions [mm]
  150 x 116 x 27
• Zero-point system [mm]
  52
• Zero-point stud [mm]
  16
• Max. tightening torque [Nm]
  45
• Holding force [kN]
  60 [4 studs]
• Accuracy [mm]
  0,005
• Suitable vice
  77 / 46
• Weight [kg]
  3,4
• Set mounting holes [Ident-Nr.]
  662101
• Set alignment grooves [Ident-Nr.]
  662111
