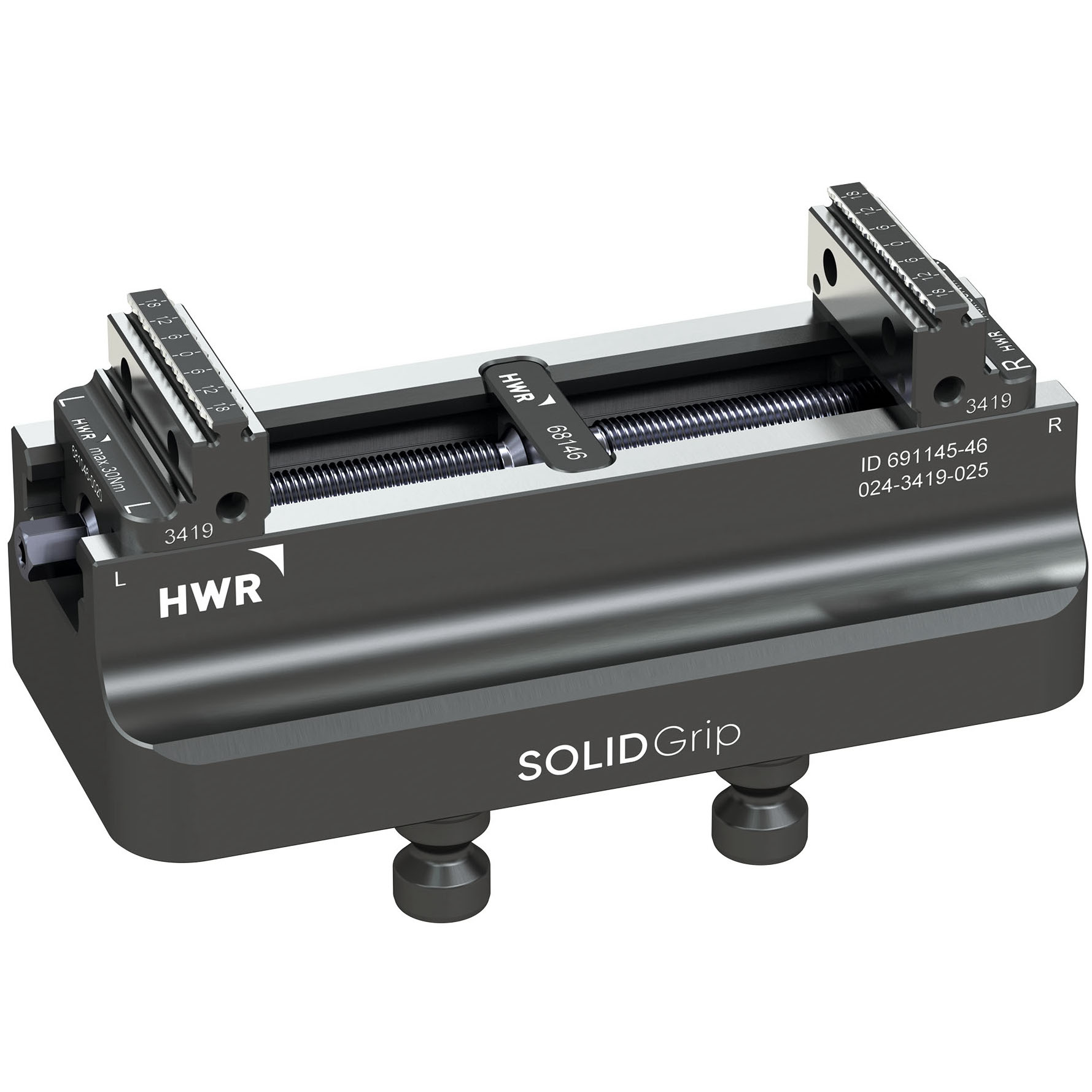

SOLIDGrip 46, ...5-axis centering vise, 0-145mm range, 46mm jaw width
USD 1,470.00
SOLIDGrip 46/77mm, 5-axis centering vice , 46mm jaw width , 0-145mm clamping range, 7.04 lbs, 46/77mm x 145mm x 77mm
HWR ID
691145-46 Compatibility
47145 Related Products
681046-0020; 68146162 Choose Quantity
Product Details
Specifications
HOW IT WORKS
As simple as it is ingenious. The SOLIDGrip vices consist of 8 individual parts because the design has been pared down to the essential. The design was determined by the function in order to generate the maximum benefit in practice and the focus is on accessibility, handling and flexibility. The SOLIDGrip clamps can be used with various accessory options in addition to the blank clamping for the most varied clamping tasks.
APPLICATION
• Suitable for SOLIDPoint® 96 and QuickPoint 96 from Lang
• Clamping with stamping technology or smooth soft surfaces
• Jaws can be used on both sides • Includes gripper detail
Dimensions
- Jaw width [mm]46
- Body length [mm]157
- Clamping range [mm]0-145
- Zero-point system [mm]52
- Zero-point stud [mm]16
- Max. tightening torque [Nm]30
- Clamping force [kN]6
- Centering accuracy [mm]±0,02
- Weight [kg]3,2
