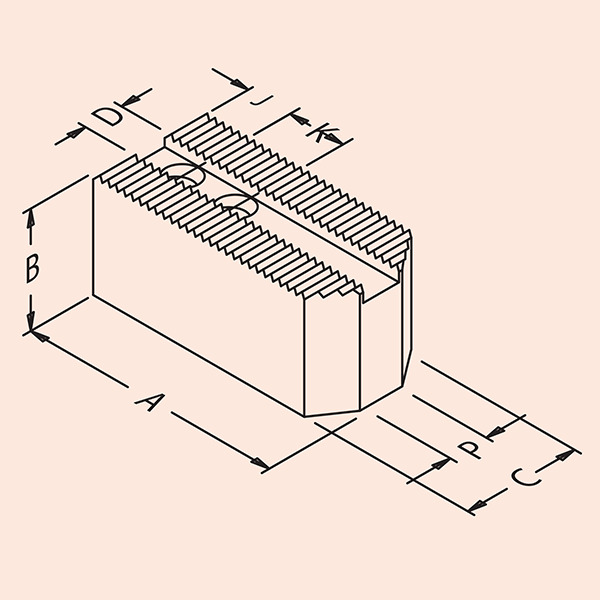

160mm Soft Jaw Pointed Metric 12mm slot B=30,bLength (A) = 72; Height (B) = 30; Width (C) = 30

Detailed Dimensions

• A length (L)
  72.00
• B Height (H) (A/F)
  30.00
• C Width (W)
  30.00
• D Slot Width Max
  12.05
• D Slot Wdt Min
  12.00
• E Slot Dpth Max
  6.00
• E Slot Dpth Min
  5.40
• F Through Hole
  11.00
• G C/Bore
  17.00
• H Bore Dpth
  18.00
• J Hole From Back
  15.00
• K Hole Pitch
  20.00
• M Seating Len
  72.00
• P Point Width
  5.00
• Q Point Angle
  120.00
• Serration
  1.5 x 60 °

Main Dimensions

• Serration Pitch
  A
• Slot Width (D)
  A
• Hole Pitch (K)
  A
• Bolt Size
  A

General Information

• Jaw Type
  Soft Jaw
• Material
  Steel
• Bolt
  M10
