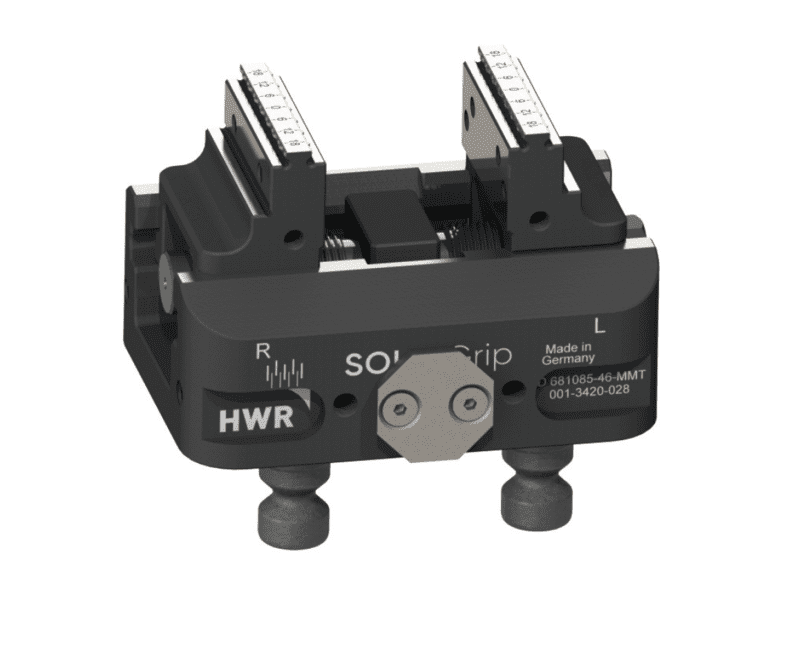

SOLIDGrip 46, ..5-axis centering vise, 0-65mm range, 46mm jaw width, incl. AUTOMATION cleat
USD 1,130.00
SOLIDGrip 46/46mm, 5-axis centering vise 46mm jaw width 0-65mm clamping range 3.74 lbs 46/77mm x 77mm x 77mm, with transport plate
HWR ID
691065-46-MMT Compatibility
47065 Related Products
68146082; 681046-0020; 652052; Choose Quantity
Product Details
Specifications
HOW IT WORKS
As simple as it is ingenious. The SOLIDGrip vices consist of 8 individual parts because the design has been pared down to the essential. The design was determined by the function in order to generate the maximum benefit in practice and the focus is on accessibility, handling and flexibility. The SOLIDGrip clamps can be used with various accessory options in addition to the blank clamping for the most varied clamping tasks.
APPLICATION
• Suitable for SOLIDPoint® 96 and QuickPoint 96 from Lang
• Clamping with stamping technology or smooth soft surfaces
• Jaws can be used on both sides • Includes gripper detail
Dimensions
- Jaw width [mm]46
- Body length [mm]77
- Clamping range [mm]0-65
- Zero-point system [mm]52
- Zero-point stud [mm]16
- Max. tightening torque [Nm]30
- Clamping force [kN]6
- Centering accuracy [mm]±0,02
- Weight [kg]1,7
