160mm Soft Jaw Metric 12mm slot B=60

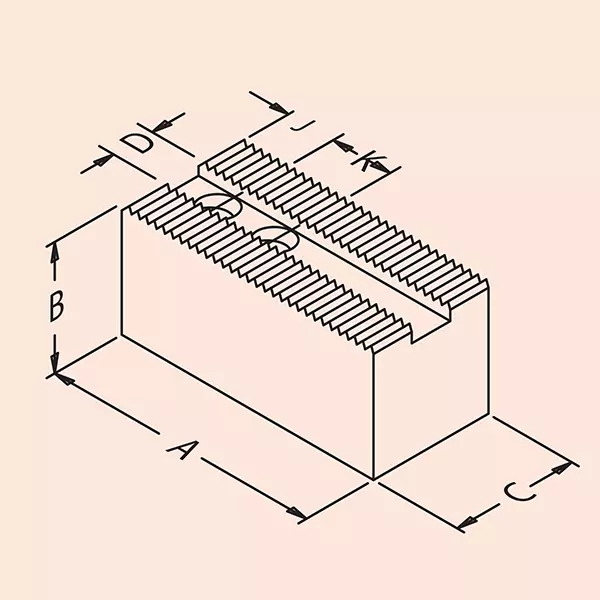

Detailed Dimensions

• A length (L)
  72.00
• B Height (H) (A/F)
  60.00
• C Width (W)
  30.00
• D Slot Width Max
  12.05
• D Slot Wdt Min
  12.00
• E Slot Dpth Max
  5.90
• E Slot Dpth Min
  5.30
• F Through Hole
  11.00
• G C/Bore
  17.00
• H Bore Dpth
  48.00
• J Hole From Back
  15.00
• K Hole Pitch
  20.00
• M Seating Len
  72.00
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
