315mm Ext Adjustagrip Jaw Metric 21mm slot, Length (A) = 90; Height (B) = 59; Width (C) = 48

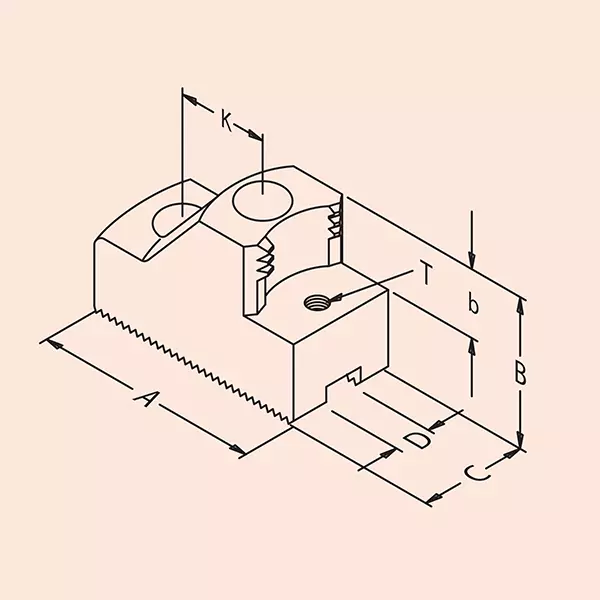

Detailed Dimensions

• A length (L)
  90.00
• B Height (H) (A/F)
  59.00
• b Jaw Depth (adjustagrip)
  25.00
• C Width (W)
  48.00
• D Slot Width Max
  21.05
• D Slot Wdt Min
  21.00
• E Slot Dpth Max
  6.60
• E Slot Dpth Min
  6.00
• F Through Hole
  17.50
• G C/Bore
  26.00
• H Bore Dpth
  42.00
• J Hole From Back
  42.50
• K Hole Pitch
  30.00
• M Seating Len
  58.50
• R Tenon To Back
  2.50
• Serration
  1.5 x 60 °
• Tapped Hole
  M8

General Information

• Unit of Sale
  1 Set = 3 jaws
