200mm Soft Jaw Pointed Metric, A=95mm, B=35mm, D=25, K=25mm

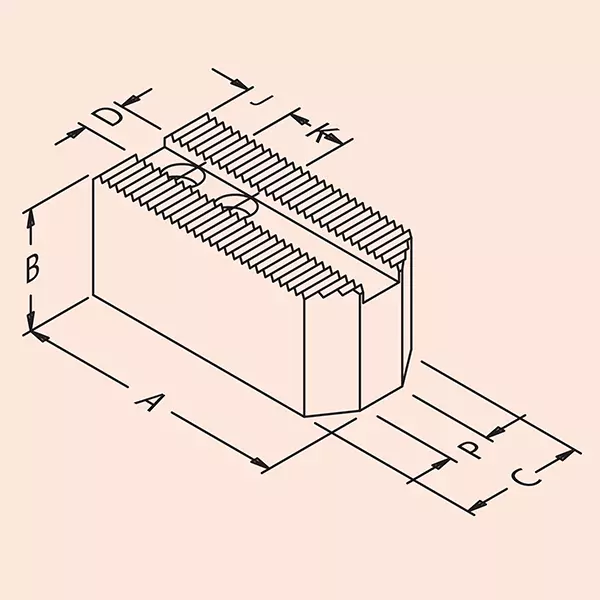

Detailed Dimensions

• A length (L)
  95.00
• B Height (H) (A/F)
  35.00
• C Width (W)
  35.00
• D Slot Width Max
  14.05
• D Slot Wdt Min
  14.00
• E Slot Dpth Max
  5.95
• E Slot Dpth Min
  5.35
• F Through Hole
  13.00
• G C/Bore
  20.00
• H Bore Dpth
  20.50
• J Hole From Back
  25.00
• K Hole Pitch
  25.00
• M Seating Len
  95.00
• P Point Width
  5.00
• Q Point Angle
  120.00
• Serration
  1.5 x 60 °
