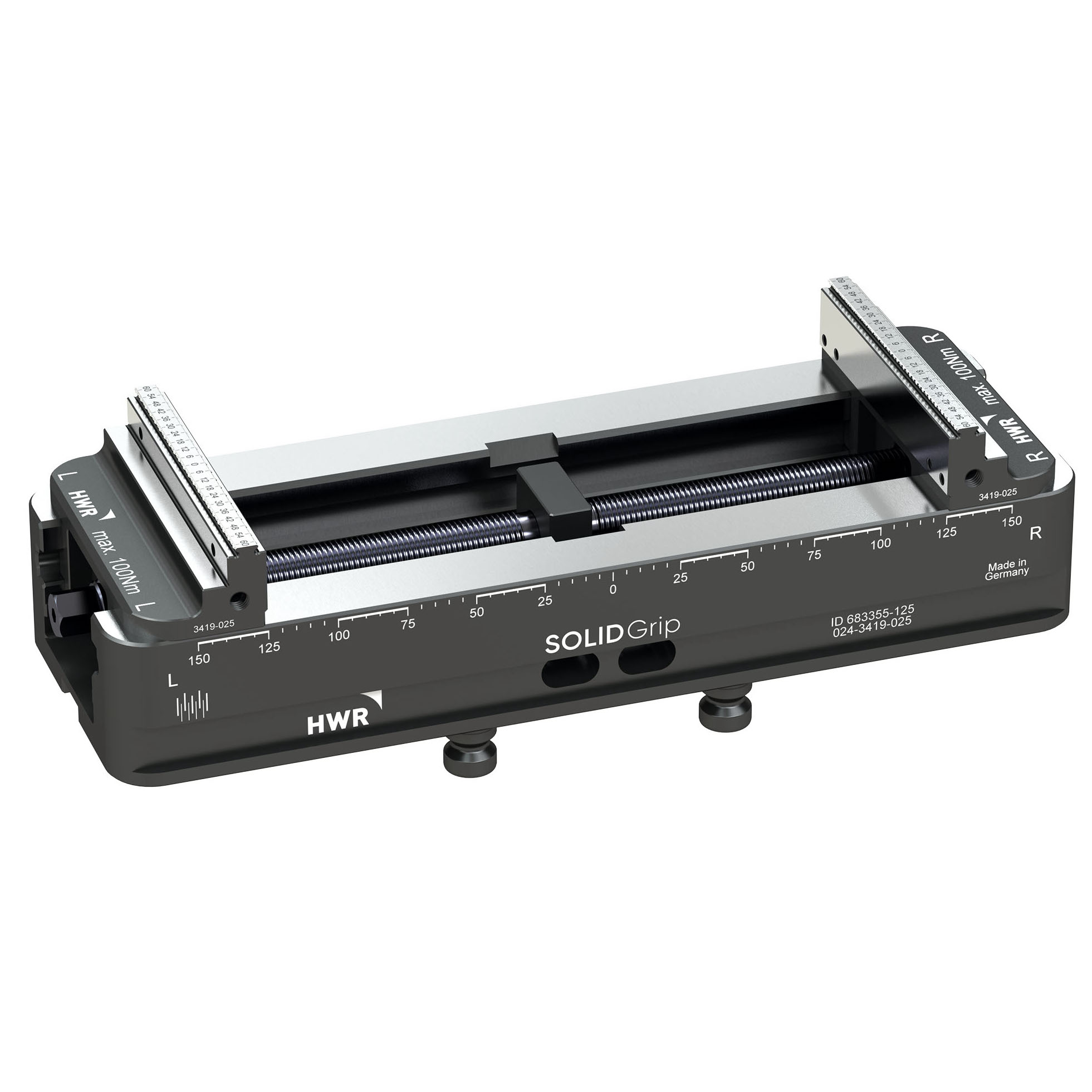

SOLIDGrip 125, ...5-axis centering vise, 0-355mm range, 125mm jaw width
USD 3,130.00
SOLIDGrip 125mm 5-axis centering vice , 125mm jaw width , 0-355mm clamping range, 34.98 lbs, 125mm x 355mm x 89mm
HWR ID
683355-125 Compatibility
48355-125 Document 1 - Name
SolidGrip Print out 1 Related Products
681125-2520; 681125-2522; 681125-364; 652002; 652052; 683355-TN2527 Choose Quantity
Product Details
Specifications
HOW IT WORKS
As simple as it is ingenious. The SOLIDGrip vices consist of 8 individual parts because the design has been pared down to the essential. The design was determined by the function in order to generate the maximum benefit in practice and the focus is on accessibility, handling and flexibility. The SOLIDGrip clamps can be used with various accessory options in addition to the blank clamping for the most varied clamping tasks.
APPLICATION
• Suitable for SOLIDPoint® 96 and QuickPoint 96 from Lang
• Clamping with stamping technology or smooth soft surfaces
• Jaws can be used on both sides • Includes gripper detail
Dimensions
- Jaw width [mm]125
- Body length [mm]360
- Clamping range [mm]0-355
- Zero-point system [mm]96
- Zero-point stud [mm]20
- Max. tightening torque [Nm]100
- Clamping force [kN]20
- Centering accuracy [mm]±0,02
- Weight [kg]15,9
