150mm Reversible Jaw Metric 12mm slot

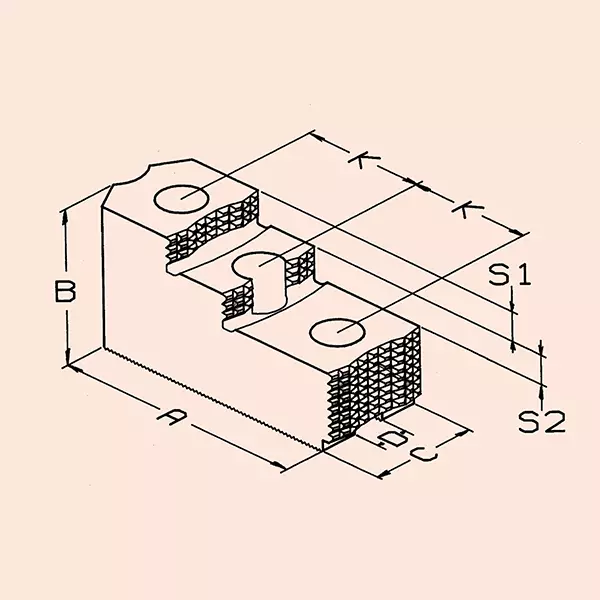

Detailed Dimensions

• A length (L)
  69.00
• B Height (H) (A/F)
  38.00
• b Jaw Depth (adjustagrip)
  14.00
• C Width (W)
  34.00
• D Slot Width Max
  12.05
• D Slot Wdt Min
  12.00
• E Slot Dpth Max
  5.60
• E Slot Dpth Min
  5.00
• F Through Hole
  11.00
• G C/Bore
  17.50
• H Bore Dpth
  26.50
• J Hole From Back
  15.00
• K Hole Pitch
  20.00
• M Seating Len
  58.50
• R Tenon To Back
  4.50
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
