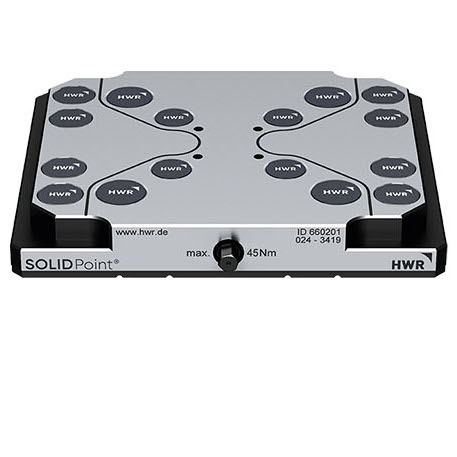

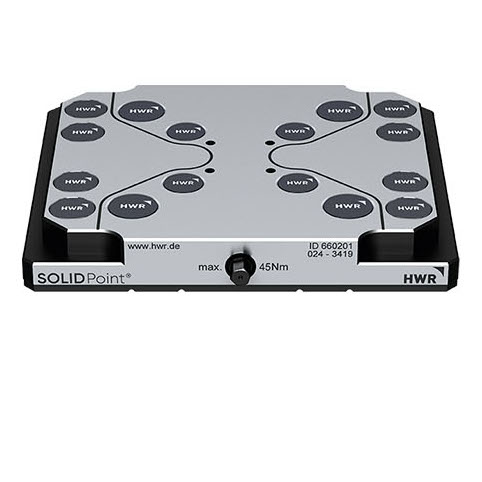

SOLIDPoint 96/52, ..Zero Point Plate, Single, Rectangular 192mm x 156mm, drilled, universal
USD 1,530.00
SOLIDPoint Single 96/52mm Zero Point Plate, for 77/125 vises, drilled, 12.1 lbs, 192mm x 156mm x 27mm
HWR ID
660201 Compatibility
Exclusive Related Products
660105; 6900023; 652052 Choose Quantity
Specifications
Dimensions

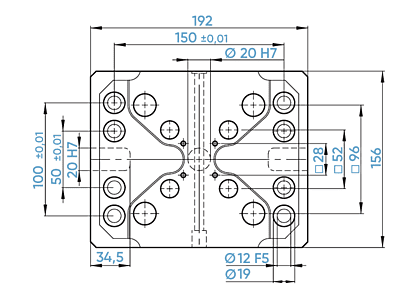

- Dimensions [mm]192 x 156 x 27
- Zero-point system [mm]96 / 52
- Zero-point stud [mm]20 / 16
- Max. tightening torque [Nm]45
- Holding force [kN]60 [4 studs]
- Accuracy [mm]0,005
- Suitable vice125 / 77 / 46
- Weight [kg]5,5
- Wrench size [mm]8
- Set mounting holes [Ident-Nr.]-
- Set alignment grooves [Ident-Nr.]-
