315mm Soft Jaw Metric 21mm slot B=80

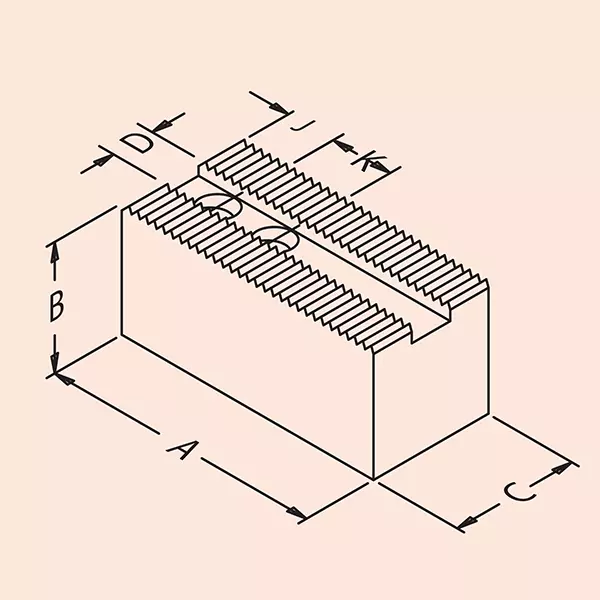

Detailed Dimensions

• A length (L)
  130.00
• B Height (H) (A/F)
  80.00
• C Width (W)
  50.00
• D Slot Width Max
  21.05
• D Slot Wdt Min
  21.00
• E Slot Dpth Max
  5.00
• E Slot Dpth Min
  5.60
• F Through Hole
  17.50
• G C/Bore
  26.00
• H Bore Dpth
  62.00
• J Hole From Back
  40.00
• K Hole Pitch
  30.00
• M Seating Len
  130.00
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
