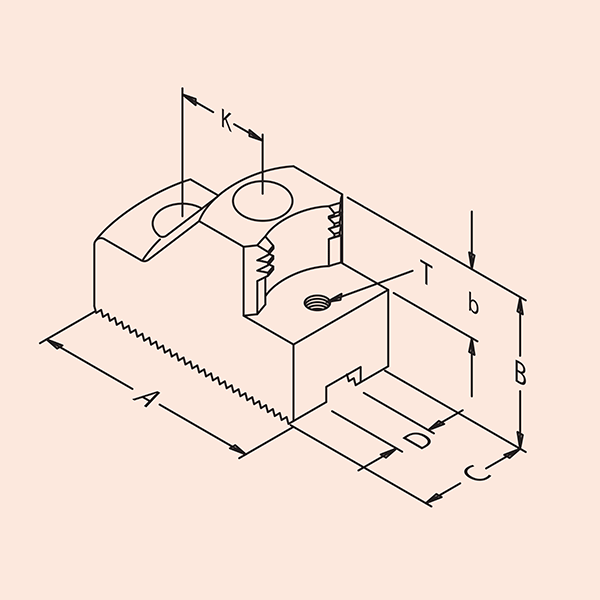

169mm Ext Adjustagrip Jaw Metric 12mm slot, Length (A) = 61; Height (B) = 49; Width (C) = 35

Detailed Dimensions

• A length (L)
  61.00
• B Height (H) (A/F)
  49.00
• b Jaw Depth (adjustagrip)
  20.00
• C Width (W)
  35.00
• D Slot Width Max
  12.05
• D Slot Wdt Min
  12.00
• E Slot Dpth Max
  5.60
• E Slot Dpth Min
  5.00
• F Through Hole
  11.00
• G C/Bore
  17.00
• H Bore Dpth
  37.00
• J Hole From Back
  14.00
• K Hole Pitch
  20.00
• M Seating Len
  54.00
• R Tenon To Back
  2.50
• Serration
  1.5 x 60 °
• Tapped Hole
  M6

General Information

• Unit of Sale
  1 Set = 3 jaws
