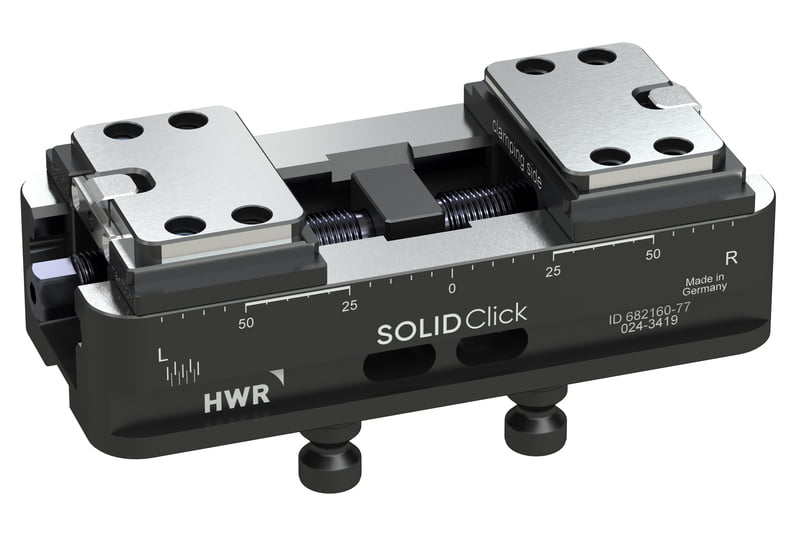

SOLIDClick 77, 5-axis centering vise, 0-205mm range, for soft jaws
USD 1,710.00
SOLIDClick 77mm 5-axis centering vise 77mm/112mm jaw width 0-205mm clamping range 10.78 lbs 77mm x 210mm x 52mm
HWR ID
682200-77 Compatibility
44200-77 Operating Manual
https://www.hwr.de/downloads/?download-file=4308 Choose Quantity
Specifications
Dimensions
- Body length [mm]210
- Clamping range [mm]205
- Zero-point system [mm]52
- Zero-point stud [mm]16
- Max. tightening torque [Nm]70
- Clamping force [kN]14
- Centering accuracy [mm]±0,02
- Weight [kg]4,9
