125mm Soft Jaw Pointed Metric 10mm slot B=35

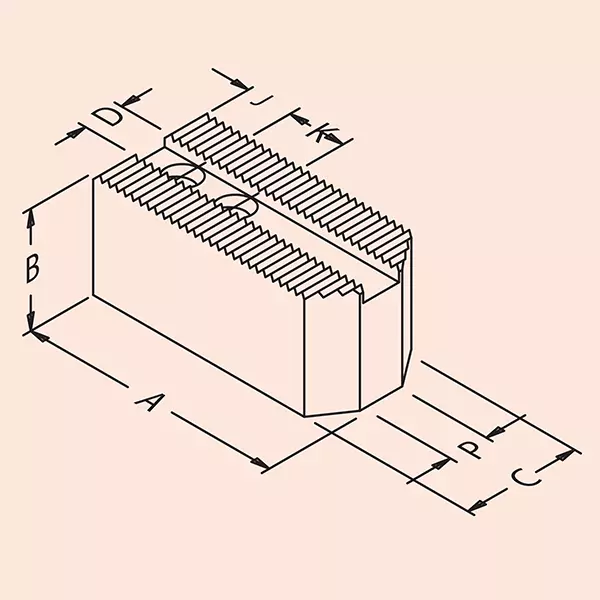

Detailed Dimensions

• A length (L)
  57.00
• B Height (H) (A/F)
  35.00
• C Width (W)
  25.00
• D Slot Width Max
  10.05
• D Slot Wdt Min
  10.00
• E Slot Dpth Max
  3.90
• E Slot Dpth Min
  3.50
• F Through Hole
  9.00
• G C/Bore
  14.00
• H Bore Dpth
  25.00
• J Hole From Back
  10.00
• K Hole Pitch
  18.00
• M Seating Len
  57.00
• P Point Width
  4.00
• Q Point Angle
  120.00
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
