210mm Ext Adjustagrip Jaw Metric 14mm slot, Length (A) = 69; Height (B) = 49; Width (C) = 38

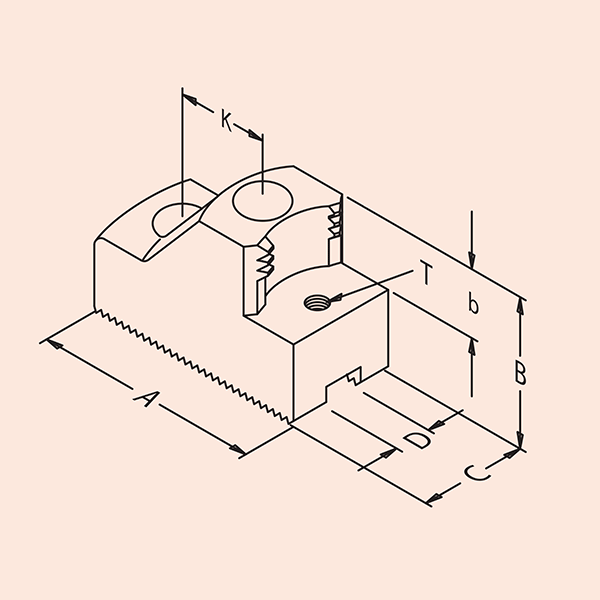

Detailed Dimensions

• A length (L)
  69.00
• B Height (H) (A/F)
  49.00
• b Jaw Depth (adjustagrip)
  20.00
• C Width (W)
  38.00
• D Slot Width Max
  14.05
• D Slot Wdt Min
  14.00
• E Slot Dpth Max
  5.80
• E Slot Dpth Min
  5.50
• F Through Hole
  13.00
• G C/Bore
  20.00
• H Bore Dpth
  35.00
• J Hole From Back
  14.00
• K Hole Pitch
  25.00
• M Seating Len
  52.50
• R Tenon To Back
  3.00
• Serration
  1.5 x 60 °
• Tapped Hole
  M6

General Information

• Unit of Sale
  1 Set = 3 jaws
