254mm Reversible Jaw Metric 16mm slot

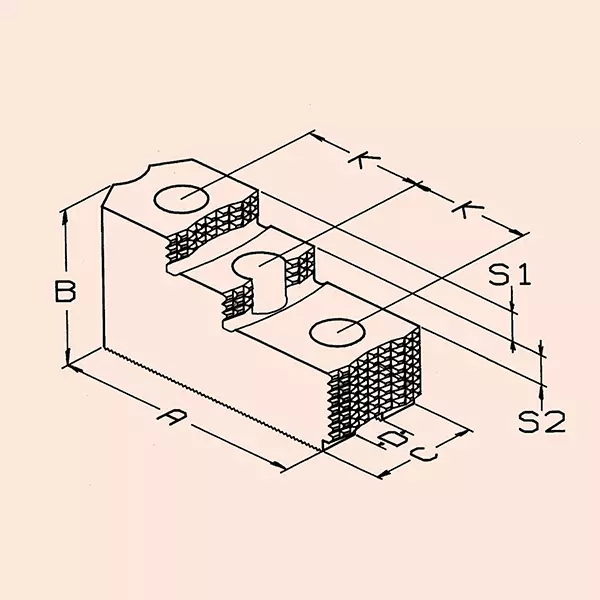

Detailed Dimensions

• A length (L)
  97.00
• B Height (H) (A/F)
  59.00
• b Jaw Depth (adjustagrip)
  15.00
• C Width (W)
  38.00
• D Slot Width Max
  16.05
• D Slot Wdt Min
  16.00
• E Slot Dpth Max
  6.20
• E Slot Dpth Min
  5.60
• F Through Hole
  13.00
• G C/Bore
  20.00
• H Bore Dpth
  44.50
• J Hole From Back
  18.50
• K Hole Pitch
  30.00
• M Seating Len
  84.00
• R Tenon To Back
  6.50
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
