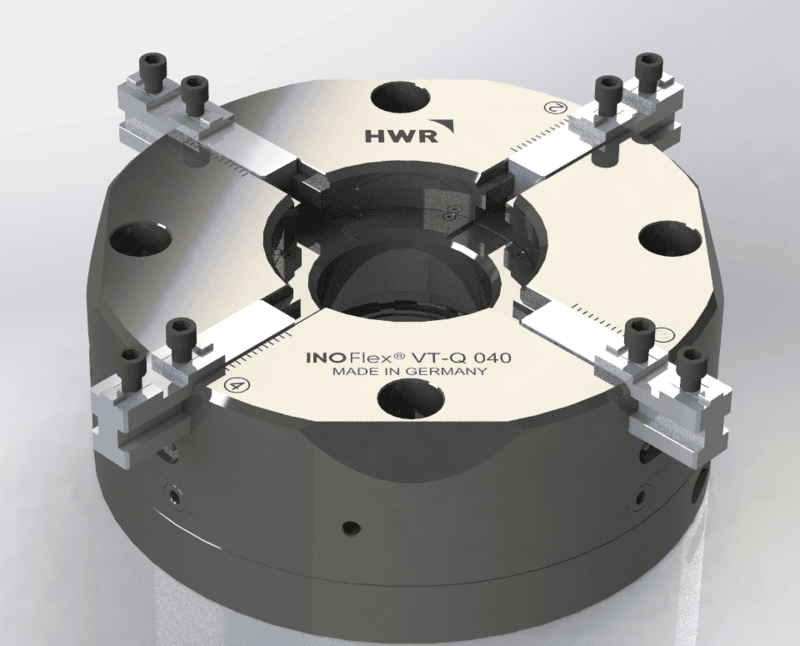

VT-Q 040 INOFlex 4-jaw compensating power-chuck dia. 400mm,with jaw quick-change system,
USD 35,800.00
Through hole ø 111mm, max. speed 3100rpm, max. clamping-force 210kN, max. actuating-force 85kN, piston stroke 27mm, mounting plain back Z-380, draw-tube connection M125x2, incl. 1 set quick-change base-jaws, 1 set soft top- jaws, Chip cover to seal the through-hole, mounting- key and special chuck-grease OKS265 [Documentation German, English]
