250mm Soft Jaw Metric 16mm slot B=80

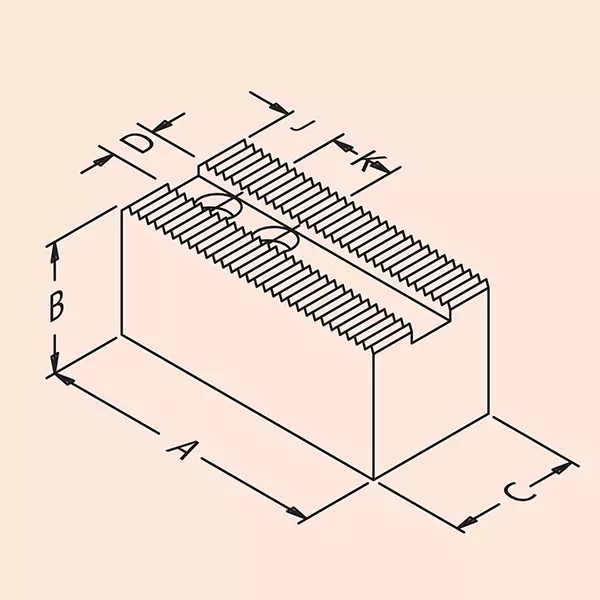

Detailed Dimensions

• A length (L)
  110.00
• B Height (H) (A/F)
  80.00
• C Width (W)
  40.00
• D Slot Width Max
  16.05
• D Slot Wdt Min
  16.00
• E Slot Dpth Max
  5.60
• E Slot Dpth Min
  6.00
• F Through Hole
  14.00
• G C/Bore
  20.00
• H Bore Dpth
  65.00
• J Hole From Back
  30.00
• K Hole Pitch
  30.00
• M Seating Len
  110.00
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
