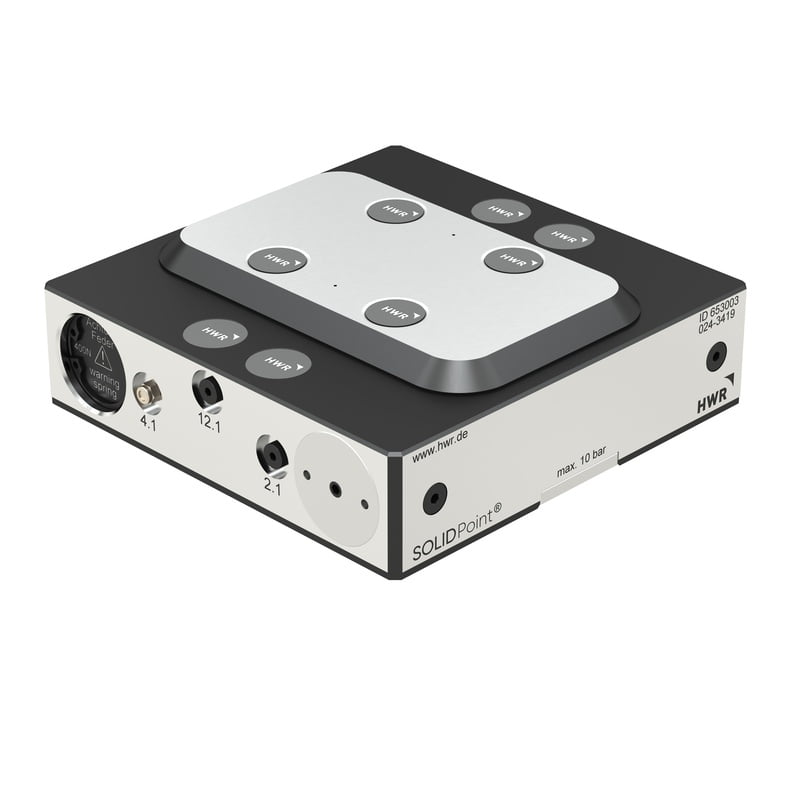

SOLIDPoint 52, Pneumatic Zero Point Plate, 158mm x 158mm x 42mm
USD 3,940.00
Pneumatic c Zero Point clamping system. Air supply through bottom or sides, prepared for air sensing
HWR ID
653003 Operating Manual
https://www.hwr.de/downloads/?download-file=5459 Choose Quantity
Specifications
Dimensions
- Dimensions [mm]158 x 158 x 50
- Zero-point system [mm]52
- Zero-point stud [mm]16
- Holding force (boosted) [kN]60 [4 studs]
- Accuracy [mm]0,005
- Suitable vice77 / 46
- Weight [kg]7,4
- Pneumatic actuating pressure [bar]min.7
