315mm Reversible Jaw Metric 21mm slot

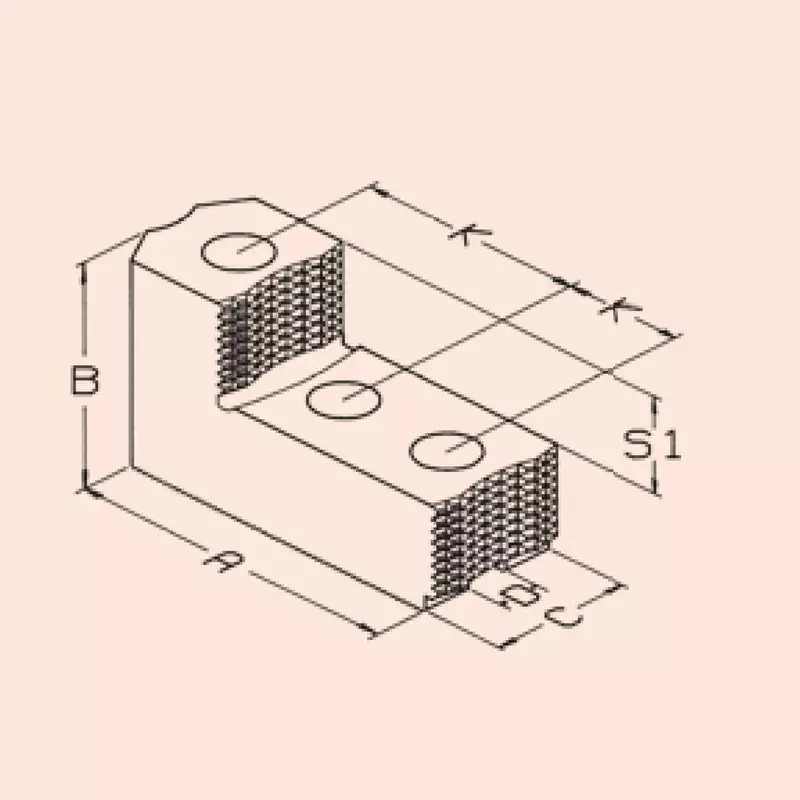

Detailed Dimensions

• A length (L)
  98.00
• B Height (H) (A/F)
  59.00
• b Jaw Depth (adjustagrip)
  22.00
• C Width (W)
  48.00
• D Slot Width Max
  21.05
• D Slot Wdt Min
  21.00
• E Slot Dpth Max
  6.20
• E Slot Dpth Min
  5.60
• F Through Hole
  18.00
• G C/Bore
  26.00
• H Bore Dpth
  42.00
• J Hole From Back
  18.00
• K Hole Pitch
  30.00
• M Seating Len
  85.50
• Serration
  1.5 x 60 °

General Information

• Unit of Sale
  1 Set = 3 jaws
